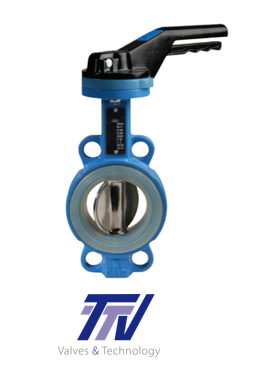

Butterfly valves Concentric - GGG50 body - TTV 1183 DI Butterfly Valve W CF8M/Alim.SI 1183

https://profluid-australia.odoo.com/web/image/product.template/9076/image_1920?unique=de3923b

2014/68/EU Directive N°0094 - Risk category III / module H - SIL 2 (& SIL 3 capable) - Bureau Veritas Type Approval certificate N°14087/D0BV - GGG50 body - Rilsan coated - ISO pad - PS: 16 bar up to DN300, 10 bar above - Gearbox recommended above DN200 - Supplied with lever up to DN300, supplied bare shaft above or with gearbox on specific reference.
Between flanges PN10/16 & ANSI 150.
FDA CERTIFICATION,
- TS: -5°C/+180°C
