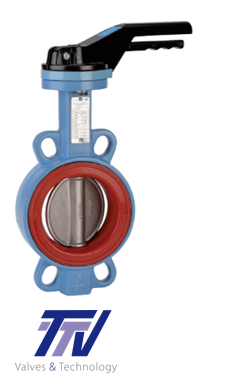

Butterfly Wafer Disc CF8M - valves Concentric - GGG50 body - TTV 1157 DI Butterfly Valve W CF8M/SI 1157
2014/68/EU Directive N°0094 - Risk category III / module H - SIL 2 (& SIL 3 capable) - Bureau Veritas Type Approval certificate N°14087/D0BV - GGG50 body - Rilsan coated - ISO pad - PS: 16 bar up to DN300, 10 bar above - Gearbox recommended above DN200 - Supplied with lever up to DN300, supplied bare shaft above or with gearbox on specific reference.
- TS: -40°C/+150°C, Between flanges PN10/16 & ANSI 150
Size DN 300 not in stock, request only
