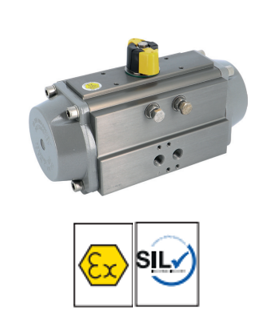

Pneu. actuated v. components Alphair actuators RES - Spring return RES

https://profluid-australia.odoo.com/web/image/product.template/11921/image_1920?unique=60de375

Design acc. to EN 15714-3 - II 2G/D c for areas 1, 2, 21 & 22 - SIL 2 (& SIL 3 capable) - Valve mounting acc. to ISO 5211 - Limit switch box bracket connection & solenoid pilot valve connection acc. to NAMUR VDI/VDE 3845 - Rack and pinion actuator - 90° operating angle (adjustable limit screws ±5°) - Anodized aluminum body - Epoxy coated aluminium caps - Position indicator - Environment working temp.: -20°C/+80°C - Max. air supply: 8 bar - Air supply connection 1/4"

  • Model

This combination does not exist.

 Couldn't find your product? Inquire Now

Data Sheet  RES Spring-Return Actuator
